EOD Electronics IED Defeat Hybrid

$27,674.00$31,489.64

Each Student Gets a Reference Guide!

Up to 15 reference guides per class



SKU: IE-TC-575 Categories: ,

Description

Our Electronics/IED Defeat Hybrid course is a 5-day, hands-on training program specifically designed for Explosive Ordnance Disposal (EOD) technicians. The course is designed to provide students with a comprehensive understanding of the various components and techniques used in IEDs. The course is divided into two main sections: classroom training and scenario-based drills.

The first two days of the course serve as a refresher for basic electronics concepts and are focused on EOD-specific training for reverse engineering and understanding relevant EOD TTPs. The classroom training includes lectures and hands-on lab work to reinforce key concepts such as DC theory, resistors, capacitors, switches, and relays, diodes, transistors, MOSFETs, and SCRs. The lab portion of the course includes a multimeter tutorial, breadboarding of simple circuits, and demonstrations of voltage and current-controlled triggering circuits for IEDs.

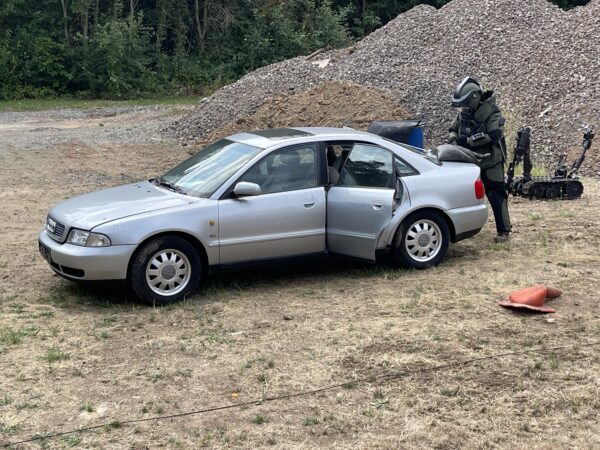

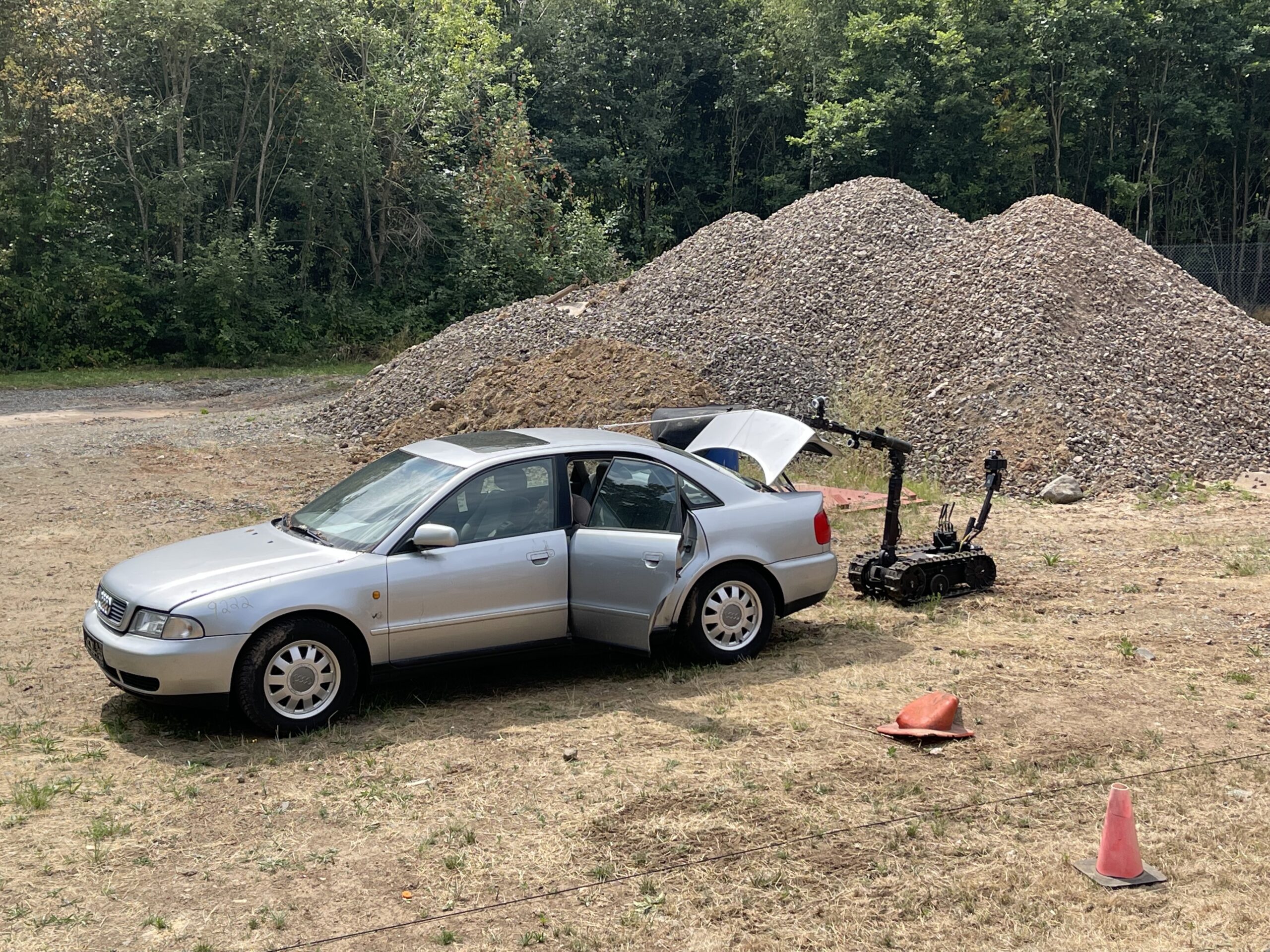

The remaining three days of the course are focused on scenario-based drills designed to provide students with practical experience in real-world situations. The drills include both category A scenarios and scenarios that allow you to practice your skills with your EOD tools, and consist of both morning and afternoon sessions, providing students with the opportunity to apply the concepts and techniques they have learned in the classroom. The drills are designed to drive home the points from the classroom training.

This course is designed for EOD technicians and can accommodate up to 15 students. It provides students with the knowledge and skills necessary to safely and effectively deal with IEDs in real-world situations.



The classroom portion is taught by an electronics technician and the scenarios are proctored by a Master EOD Technician.



Day 1: DC Theory (Resistors, Batteries, Capacitors and Switches)



Lecture:

The lecture is focused around the various passive components found in IEDs and the foundational concepts that explain their behavior in IED circuits. These concepts will also be related to EOD procedures by examining how DET Diagnostics and Ohm’s Law line up.



Lab:

Multimeter tutorial.
Breadboard simple circuits and test with supplied multimeter. Observe capacitor charging and voltages across open, closed and EOL switches.
Solder breadboard leads to switches.



Day 2: Relays, Diodes, Transistors, MOSFETs, and SCRs



Lecture:

The lecture is focused on the common firing switches used in IEDs in the past 20 years. Students are introduced to electromechanical and semiconductor firing switches through their Schematic Symbols, Data Sheets and Example IED Circuits.



Lab:

Breadboard five historical IEDs using supplied components.
Build Dual SCR IED Circuit Board.
Build RC Timer Board.



Day 3: IED Defeat Scenarios



Morning:





Afternoon:





Day 4: IED Defeat Scenarios



Morning





Afternoon





Day 5: IED Defeat Scenarios



Morning









Deliverables:

  • 15 Lab kits (Breadboard, Soldering Iron, Parts Kit, and COTs timer)
  • 15 Ultimate EOD Electronics Reference Guides
  • Devices for Scenarios
  • Instructor Time and Travel
  • CAD files and source code (from the labs)
  • Certificate of Completion

Includes lifetime access to course materials on EODMAKER.com
